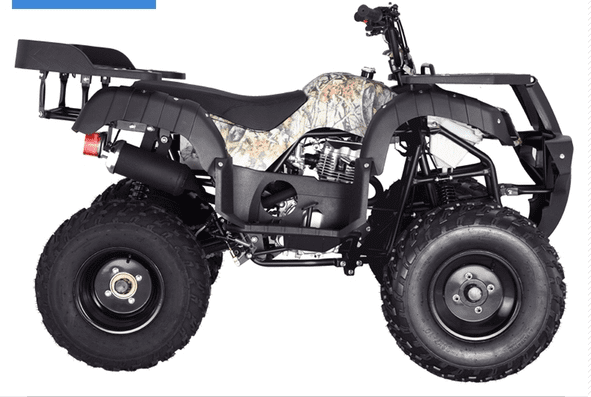

250CC, Air cooled, 4-stroke, 1-cylinder, Manual transmission
Start Type:
Electric start
Transmission:
Chain Drive, Manual 4 GEARS & REVERSE
Engine Gear:
4-3-2-1-N-R
Shift Gear:
Foot
Max Torque:
8.5N.m/5000-5500r/min
Wheelbase (inch):
43.9
Ignition:
CDI
Fuel Capacity (L):
4.2
Chassis:
Front Hand Brake:
Drum
Rear Foot Brake:
Hydraulic Disc
Tire Front:
23x7-10
Tire Rear:
22x10-10
Suspension Front (inch):
15.7
Suspension Rear (inch):
13.4
Speed Limiter (Yes/No):
Yes
Engine kill switch (Yes/No):
Yes
Dimension:
Battery:
12V/9Ah
G.W. (lbs):
363.76
N.W. (lbs):
308.65
Max Loading (lbs):
364
Overall Size (inch):
69.3x42.1x43.3
Carton Size (inch):
55.9x33.0x34.3
Seat Height (inch):
31.89
Ground Clearance (inch):
5.32
WARRANTY Information:
We offer 6 months warranty on
engine and 30 days
defective parts warranty.
Defective part must be returned
before we can send new one under
the warranty.
