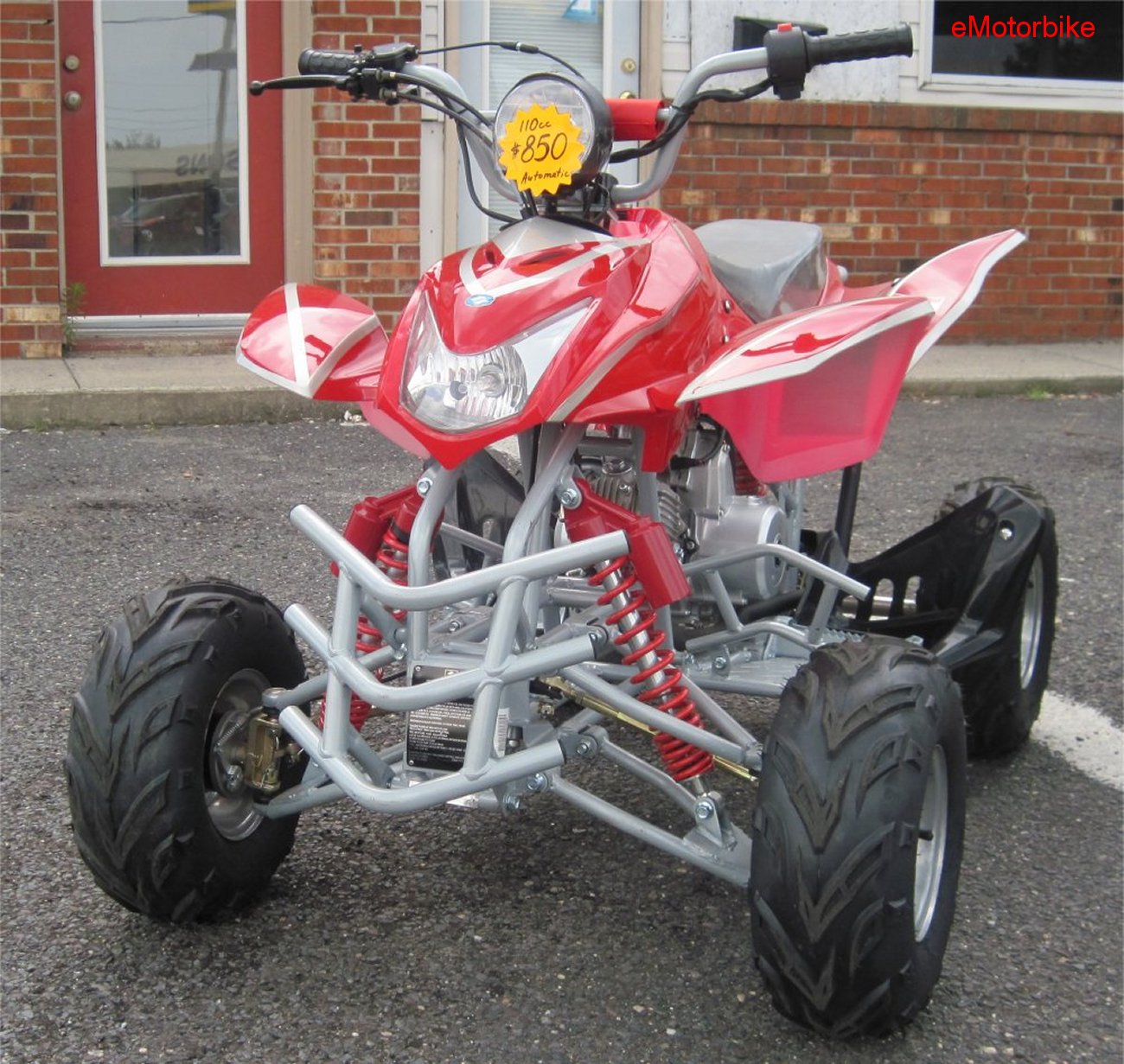

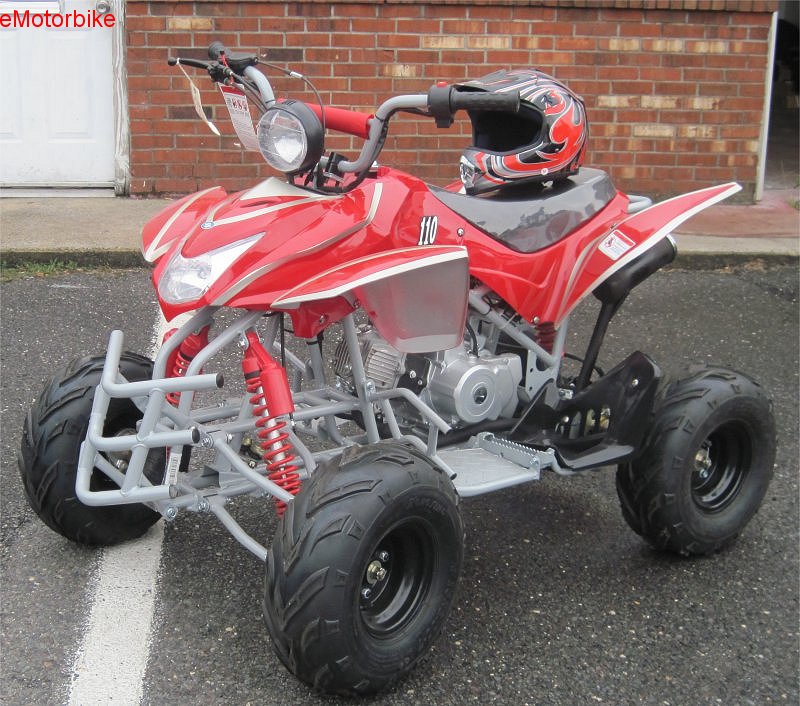

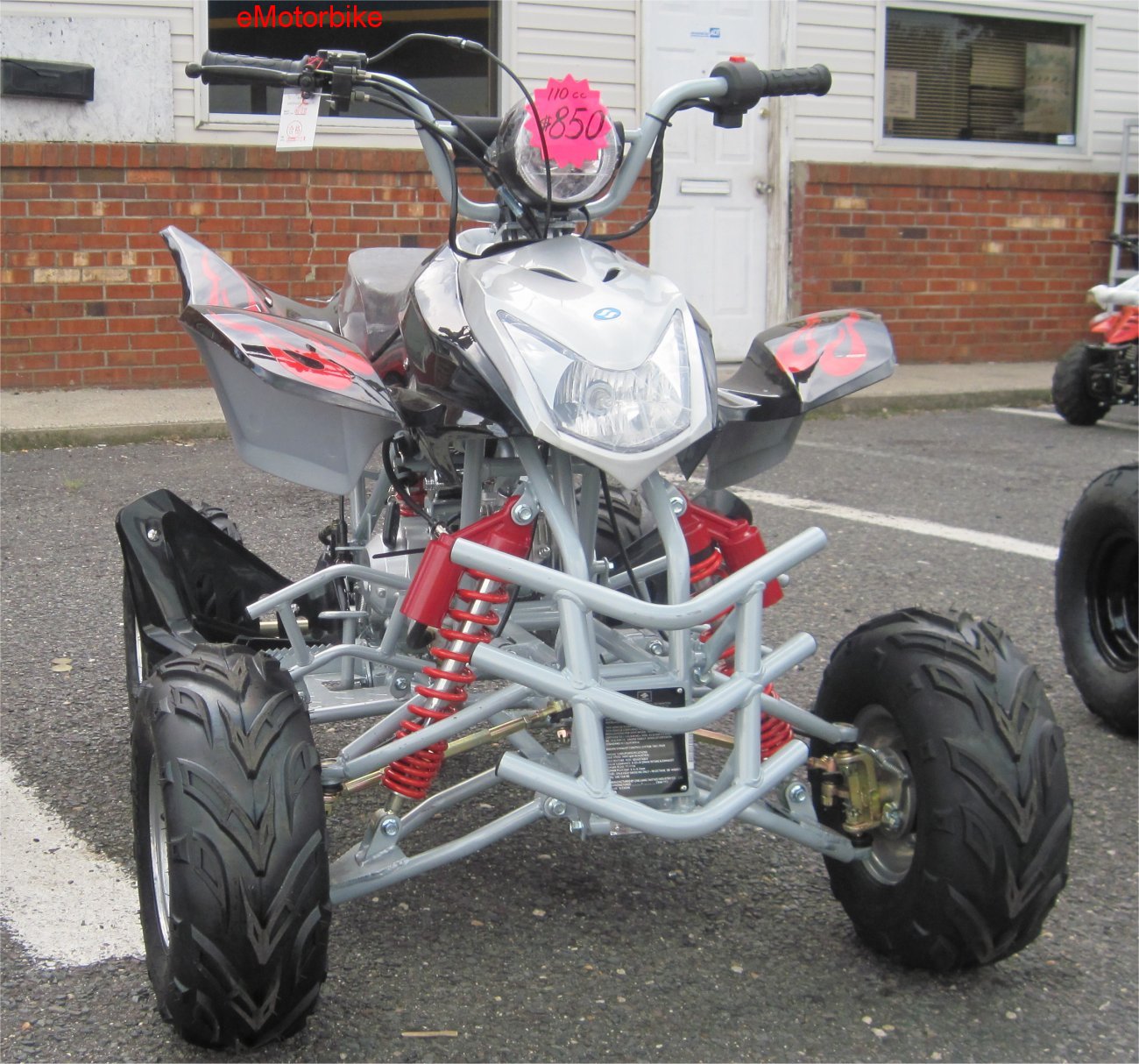

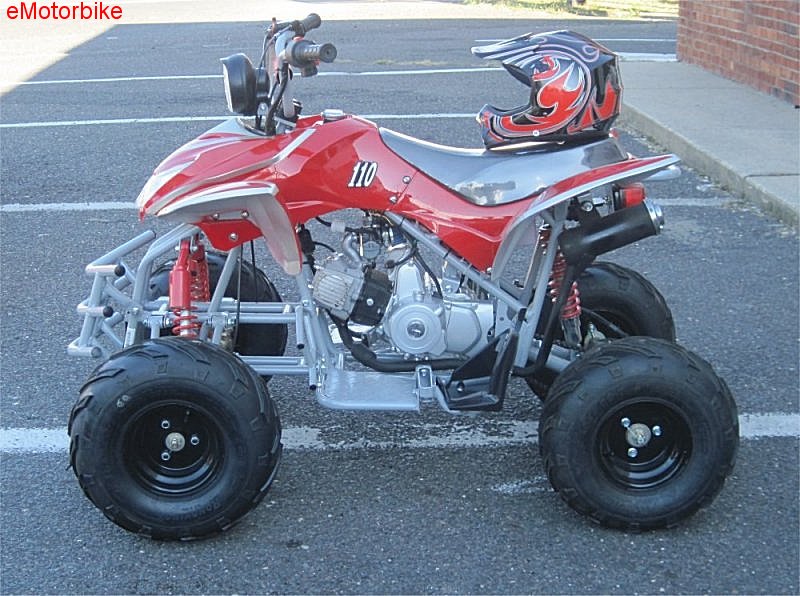

110CC, Air cooled, 4-stroke, 1-cylinder, automatic
Start Type:
Electric start
Transmission:
Chain Drive, Automatic
Max Torque:
6.5N.m/5000-5500r/min
Wheelbase (inch):
32.68
Ignition:
CDI
Fuel Capacity (L):
2.5
Chassis:
Front Hand Brake:
Drum
Rear Foot Brake:
Hydraulic Disc
Tire Front:
16x8-7"
Tire Rear:
16x8-7"
Suspension Front (inch):
14.2
Suspension Rear (inch):
12.6
remote control (Yes/No):
Yes
Speed Limiter (Yes/No):
Yes
Engine kill switch (Yes/No):
Yes
Dimension:
Battery:
12V/4Ah
G.W. (lbs):
286.59
N.ATA-110H1/H4W.(lbs):
238.09
Max Loading (lbs):
200
Overall Size (inch):
60.6x37x39.6
Carton Size (inch):
54.92x35.63x23.23
Seat Height (inch):
30.71
Ground Clearance (inch):
3.15
WARRANTY
We offer
30 day warranty on all defective parts. It does not cover
bulbs, batteries, or tires. Defective part must be returned
before we can send new one under warranty.
